The DIN911 Black Oxide Long Reach Allen Wrench should be written as a small and medium metric repair SKU with a dark workshop finish. This page should not repeat the nickel plated DIN911 page, the imperial black oxide page, or the heavy-duty black oxide page.
Its clearest identity is simple: DIN911 style, black oxide finish, 1.5mm–8mm metric range, and high strength carbon steel. That makes it suitable for buyers who need a compact dark-finish Allen wrench range for repair packs, bicycle adjustment kits, equipment cover service, and small machinery maintenance.
This is not a large-size industrial wrench page. It does not cover 12mm, 19mm, 22mm, or 36mm sizes. It should stay focused on common small metric fasteners. The black oxide finish gives it a more workshop-oriented look than nickel plated models, while the 1.5mm–8mm range keeps the page different from heavy-duty black oxide tools.
Feature | Page Meaning |
|---|---|
DIN 911 | Standard L type metric hex key format |
1.5mm–8mm | Small and medium metric size coverage |
Black oxide finish | Dark workshop appearance |
High strength carbon steel | Cost-controlled regular repair supply |
Long reach L type | More reach than short compact hex keys |
Compared with DIN911 Nickel Plated Long Arm Hex Key, this model should not focus on bright catalog display. The nickel plated page is better for clean retail presentation, while this page should focus on dark-finish repair kit supply.
Compared with Heavy Duty Black Oxide Long Arm Allen Wrench, this model is smaller and more standard. The heavy-duty page should focus on wide large-size coverage, while this product stays within 1.5mm–8mm.
Compared with Black Oxide Imperial Allen Wrench Tool, this page uses metric sizes, not inch sizes. The imperial page should focus on imported equipment and inch fasteners.
Compared with Ball End Allen Wrenches, this model is a straight-end L key. It should not focus on angled fastening.
Item | Specification |
Product Name | DIN911 Black Oxide Long Reach Allen Wrench |
Product Type | Long Reach L Type Allen Wrench / Hex Key |
Material | High Strength Carbon Steel |
Surface Finish | Black Oxide Finish |
Hardness | 48–52 HRC |
Size Range | 1.5mm–8mm |
Standard | DIN 911 |
Structure | Long Reach L Type Design |
Application | Small Metric Repair, Workshop Kits, Bicycle Adjustment, Equipment Covers |
Customization | Logo, Packaging, Size Combination, Surface Finish, Private Label |

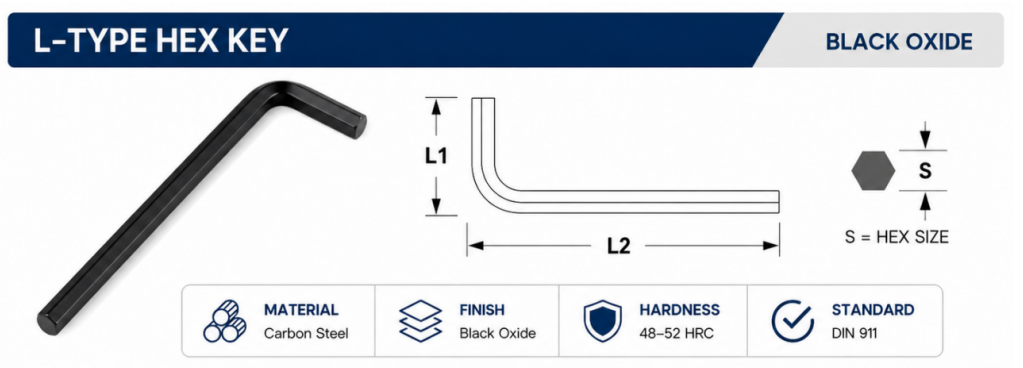

Item No. | Size(S) | L1(Short Arm) | L2(Long Arm) | Weight | ||||
mm | mm | mm | g | |||||
HKDB0150 | 1.5mm | 15.5mm | 45.4mm | 0.9g | ||||
HKDB0200 | 2mm | 18mm | 50.4mm | 1.7g | ||||
HKDB0250 | 2.5mm | 20.8mm | 57.6mm | 3g | ||||
HKDB0300 | 3mm | 22.4mm | 63.4mm | 4.7g | ||||
HKDB0400 | 4mm | 28.5mm | 74mm | 9.1g | ||||
HKDB0500 | 5mm | 32.4mm | 82.5mm | 17.6g | ||||
HKDB0600 | 6mm | 36.8mm | 93mm | 28.5g | ||||
HKDB0800 | 8mm | 42mm | 104mm | 56.3g | ||||
NOTE All dimensions are measured manually, there may be slight tolerances, please refer to the actual product. | ||||||||
OEM options include laser logo, size combination, plastic holder, pouch, hanging card, blister card, barcode label, color box, and private label packaging.
Check Point | Focus |
Metric Size Fit | Confirm 1.5mm–8mm size accuracy |
Black Surface | Check finish coverage, color consistency, and rust spots |
L Type Shape | Inspect DIN911 angle and long reach arm dimension |
Packing Match | Confirm size order, holder, barcode, and carton label |
This model covers 1.5mm–8mm and is better for small metric repair. Heavy-duty black oxide models should focus on larger industrial sizes.
No. This product uses metric sizes from 1.5mm to 8mm. Imperial Allen wrenches use inch sizes.
It is suitable for hardware retailers, bicycle repair kit suppliers, workshop maintenance packs, distributor catalogs, and OEM Allen wrench programs.
