Views: 0 Author: Wenzhou Shuntai Hardware Publish Time: 2026-08-23 Origin: Shuntai Tool Guides
Ball end hex keys are widely used in machinery assembly and equipment maintenance because they allow angled access to recessed or obstructed fasteners. In tight spaces, standard straight-end hex keys may not provide enough clearance for smooth operation. A ball end design helps technicians insert the tool at an angle and rotate the fastener more efficiently.
For industrial maintenance teams, assembly workshops, and B2B procurement buyers, choosing the right ball end hex key is not only about size. Material grade, heat treatment, access angle, torque limit, arm length, surface finish, and packaging method all affect long-term tool performance.
This guide explains how to choose suitable ball end hex keys for machinery assembly in tight spaces. It also provides practical selection points for wholesalers, distributors, OEM buyers, and industrial hand tools suppliers who need stable quality and repeatable supply.
Angle of Access: High-quality ball end hex keys allow up to a 25-degree entry angle, enabling continuous 360-degree rotation in confined machinery housing.
The Torque Trade-off: Ball ends have reduced surface contact area compared to flat ends; they are designed for rapid threading, not final high-torque tightening.
Material Non-Negotiables: For industrial use, prioritize S2 tool steel or hardened Chrome-Vanadium (Cr-V) with tight machining tolerances to prevent shearing the ball head inside a fastener.
Procurement Strategy: Standardizing on dual-end configurations (long-arm ball end, short-arm flat end) in appropriate Metric/SAE sets streamlines both run-down and final torque stages without tool switching.
Restricted access imposes massive costs on machinery builds. Engineers often prioritize compactness over serviceability when designing modern equipment. Control panels feature dense wiring channels overlapping structural bolts. Engine blocks integrate sensors directly in the path of mounting hardware. Conveyor chassis utilize recessed pockets to protect fastener heads from moving parts.
Each obstructed clearance creates a bottleneck on the assembly floor. Technicians using standard flat-ended tools must engage the fastener, turn it slightly, remove the tool, and find the socket blindly again. This repetitive cycle kills momentum. It introduces vast inefficiencies into tightly scheduled production runs. A simple five-second rundown transforms into a frustrating three-minute ordeal.

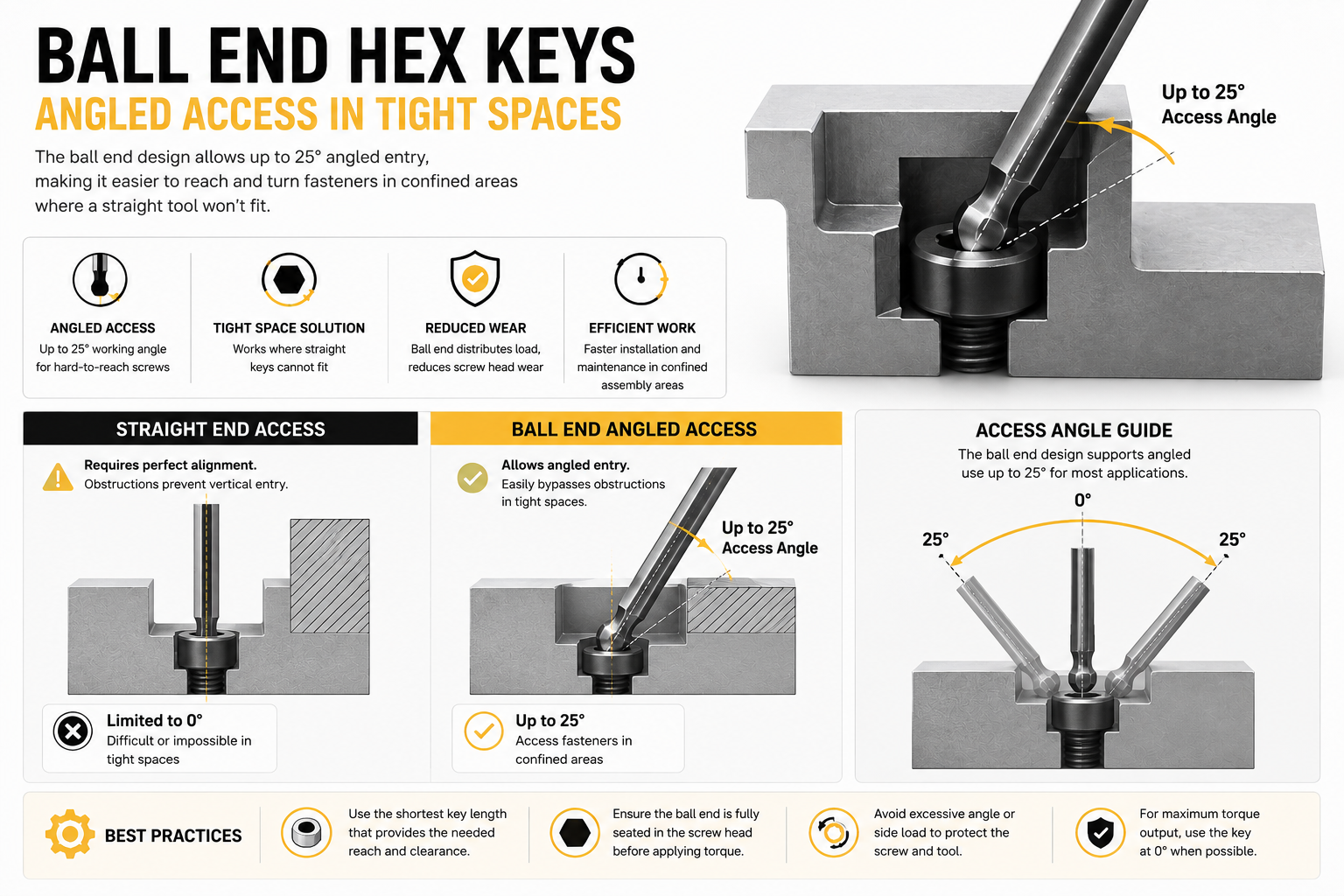

A 20-to-25-degree offset eliminates this tedious process. The spherical geometry of the ball end engages the socket walls even when tilted. Technicians angle the shaft away from the obstruction. They no longer need to constantly remove and reinsert the hex key in tight spaces. You gain the ability to execute continuous 360-degree rotation.
This continuous rotation creates a quantifiable cycle time reduction. Consider an assembly line producing 100 industrial pumps daily. If a worker saves just two minutes per pump by spinning fasteners smoothly around an obstruction, you recover over three hours of lost labor. Ball end hex keys turn a stuttering ratcheting motion into a fluid spin. They empower your workforce to maintain a steady rhythm, reducing frustration and elevating overall output quality.
Not all tools survive the rigors of an industrial assembly line. You must evaluate the underlying metallurgy and manufacturing precision. A cheap tool will fail quickly, causing severe delays.
Industrial applications demand specific steel grades. S2 tool steel and hardened Chrome-Vanadium (Cr-V) represent the two primary choices. S2 tool steel provides exceptional shock resistance and hardness. It effectively prevents the ball from rounding over under repetitive use. Mechanics favor S2 for high-volume assembly floors because it retains its shape aggressively.
Cr-V is highly durable and resists corrosion well. However, you must evaluate the manufacturer's heat treatment process carefully. Poorly treated Cr-V leaves the narrow neck of the ball end brittle. A brittle neck invites sudden snapping under lateral stress.
Property | S2 Tool Steel | Chrome-Vanadium (Cr-V) |
|---|---|---|
Hardness Level | Extremely High (Typically 58-62 HRC) | High (Typically 52-56 HRC) |
Shock Resistance | Excellent | Good |
Ductility | Lower (Prone to shattering if abused) | Higher (Prone to bending before snapping) |
Ideal Use Case | High-repetition industrial assembly | General maintenance and repair |

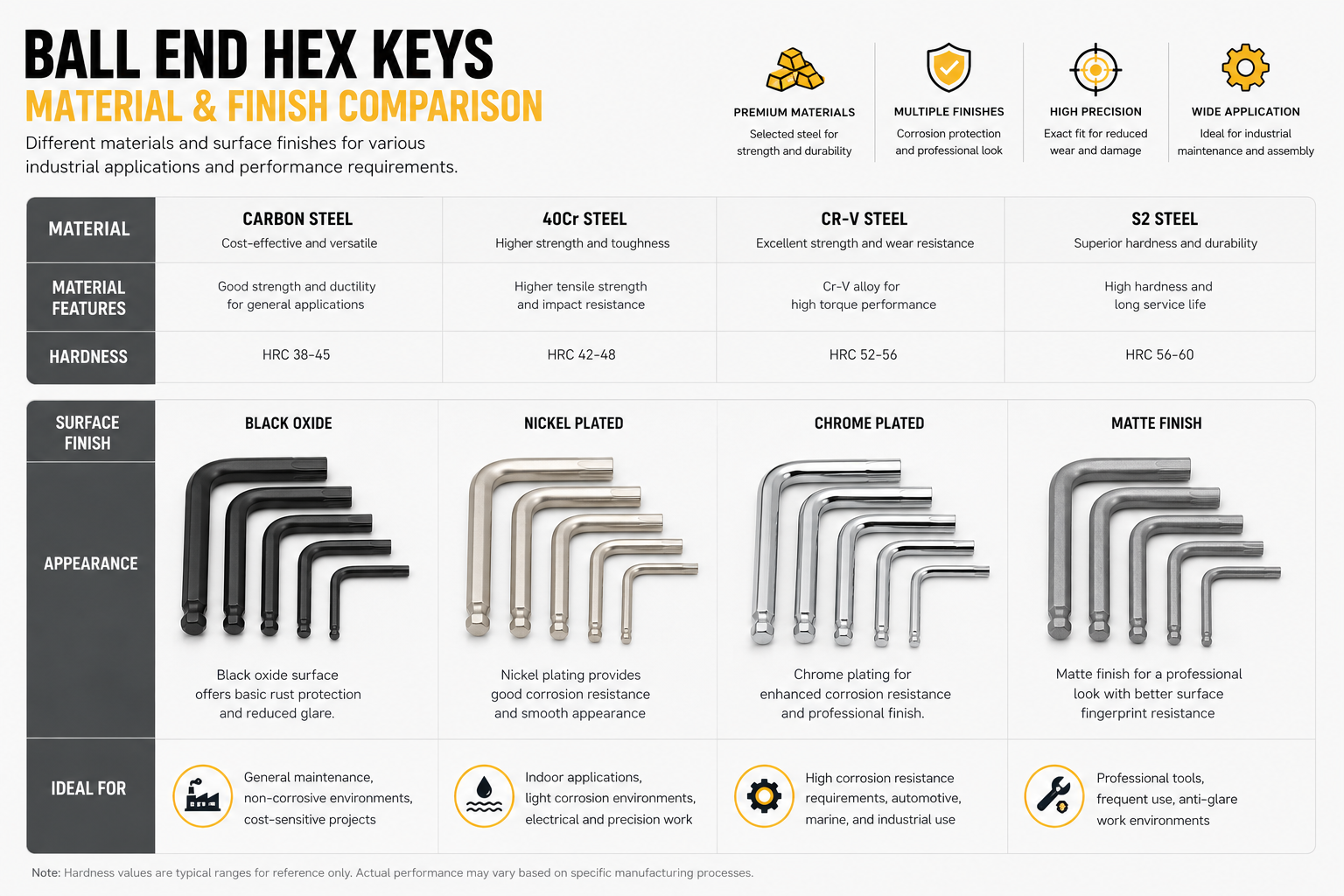

Material selection directly affects durability, price positioning, and market suitability. For ball end hex keys, the neck area of the ball end is more sensitive to torque and angle stress, so material and heat treatment should be evaluated carefully before bulk purchasing.
Material | Suitable Use | Buyer Positioning |
|---|---|---|
Carbon Steel | Light-duty and cost-sensitive applications | Entry-level wholesale supply |
40Cr Steel | General maintenance and practical tool sets | Balanced cost and performance |
CR-V Steel | Regular professional repair and workshop use | Mid-range professional market |
S2 Steel | Higher-strength industrial assembly and frequent use | Premium tool and industrial supply market |
Carbon steel is suitable for low-cost tool kits and general household markets. 40Cr steel provides better toughness for daily repair use. CR-V steel is a common choice for professional hand tools because it balances durability, cost, and availability. S2 steel is recommended for higher-grade ball end hex key sets where strength, wear resistance, and professional positioning are more important.
For OEM buyers, the material choice can be matched with surface finish, packaging design, size range, and target market price.
Machining tolerances matter immensely. Emphasize the importance of precise, chamfered tips during procurement. The ball profile inherently minimizes contact area inside the socket. Poorly machined ball ends cause severe point-loading on the fastener walls. This concentrates all rotational force onto tiny stress risers, leading directly to stripped screw heads. Precision CNC-machined tips distribute force more evenly across the socket facets.
Arm length configuration dictates utility on the floor. Professional sets utilize a dual-end design. The long arm houses the ball end. It provides the necessary reach deep into recessed machinery cavities. The short arm houses the flat, straight end. This short arm provides maximum leverage for breaking loose stubborn bolts or applying final seating torque.
Different machinery assembly tasks require different ball end hex key structures. For B2B buyers, selecting the correct product type helps match the tool to the final application, price level, and user group.

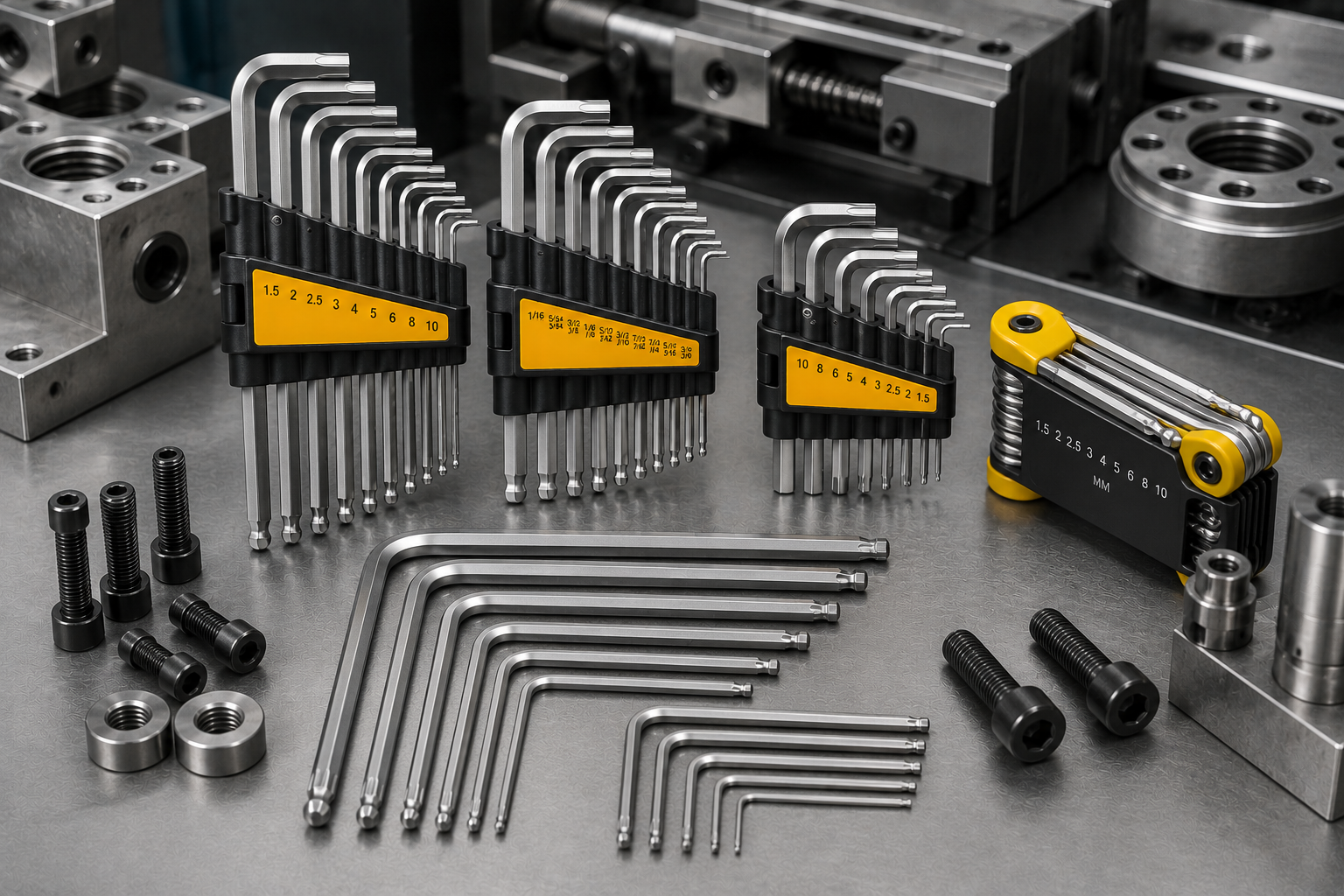

Shuntai can supply different ball end hex key products for industrial maintenance, machinery assembly, hardware retail, and OEM tool programs, including long arm ball end hex keys, short arm hex keys, ball end hex key sets, metric Allen key sets, inch Allen key sets, S2 ball end hex keys, Cr-V Allen key sets, and customized size combinations.
Long arm ball end hex keys are suitable for reaching recessed fasteners and working around limited access areas. The ball end supports angled entry for faster run-down, while the straight end can be used for stronger final tightening when proper torque is required.
For distributors and wholesalers, complete ball end hex key sets are usually easier to sell than single pieces because they cover more repair and assembly needs. Customized set combinations can also be arranged according to customer market demand.
Understanding the physics of the ball profile prevents catastrophic failures. We must transparently acknowledge structural limitations. Ball ends inherently have significantly less surface area engagement than flat ends. A standard flat hex key engages the entire depth of the socket walls via line contact. A ball end only makes point contact at its widest diameter. This geometry handles rapid spinning beautifully but fails under heavy torque loads.
Ignoring this physics lesson invites the "sheared head" catastrophe. Applying too much torque at an angle causes the narrow neck of the ball to snap. The hardened steel ball breaks off and wedges permanently inside the recessed set screw. You now face a costly extraction nightmare. Hardened tool steel resists standard drill bits. Technicians often resort to electrical discharge machining (EDM) to remove the broken fragment. This halts production and destroys timelines.
Establish a strict best practice workflow on your assembly floor:
Use the long-arm ball end for fast, off-angle run-down. Spin the fastener until it seats lightly against the mating surface.
Flip the tool immediately. Use the short-arm flat end for the final, high-torque seating. Ensure the flat end engages the socket fully before applying pressure.
Furthermore, enforce strict safety guidelines against "cheater bars". Never add pipes, hollow tubes, or adjustable wrenches to hex keys for extra leverage. Hex keys are engineered to flex slightly under their maximum rated load. Adding a cheater bar overrides this built-in safety limit. It virtually guarantees tool destruction or severe fastener damage. Protect your tools and your assemblies by respecting mechanical limits.
Mixing measurement standards destroys fasteners rapidly. A 5/16" hex key measures roughly 7.93mm. It will fit into an 8mm socket socket. It feels slightly loose but seems workable. However, applying torque with this mismatched pairing will round out the socket instantly. You must audit your machinery origins to avoid this costly error.
European and Asian equipment typically follow DIN/ISO metric standards. Legacy US equipment relies heavily on ANSI SAE (imperial) standards. Identify the exact requirements of your assembly lines. Keep Metric and SAE sets physically separated or distinctively color-coded on the floor to prevent accidental cross-contamination.
When shortlisting tools, evaluate your procurement strategy carefully.
Evaluate 22-piece or larger master sets for complete, comprehensive coverage across the facility.
Ensure the vendor allows for single-key modular replacement. High-use sizes like 4mm, 5mm, or 3/16" wear out faster than others. You should never repurchase a whole master set just to replace one lost or worn 5mm key.
Organization prevents massive headaches. Emphasize the necessity of high-visibility, size-stamped storage cases. Securely locking cases are mandatory for shop floor environments. Missing tools pose a severe Foreign Object Debris (FOD) risk. A lost hex key forgotten inside an engine block or electrical panel causes catastrophic damage during startup. Use shadow boards or precision-cut foam inserts. They provide immediate visual confirmation when a tool is missing.

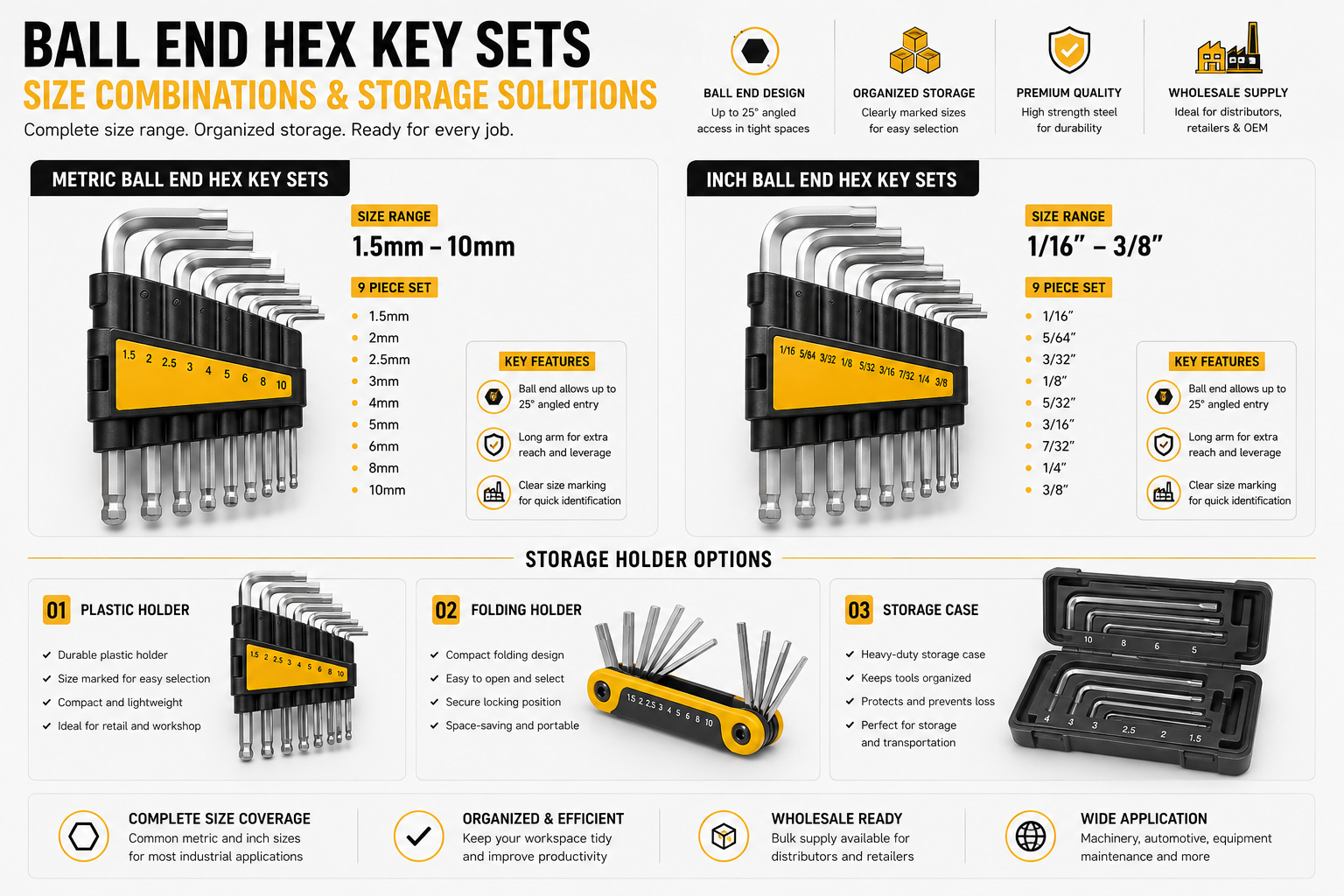

For wholesale and retail buyers, size combination is an important part of product planning. A suitable ball end hex key set should cover the most commonly used sizes in the target market while avoiding unnecessary sizes that increase cost but have low demand.
Common options include metric ball end hex key sets, inch ball end hex key sets, long arm ball end sets, standard hex key sets, and mixed industrial maintenance sets. High-use metric sizes such as 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, and 10mm are often selected for general repair and machinery assembly applications.

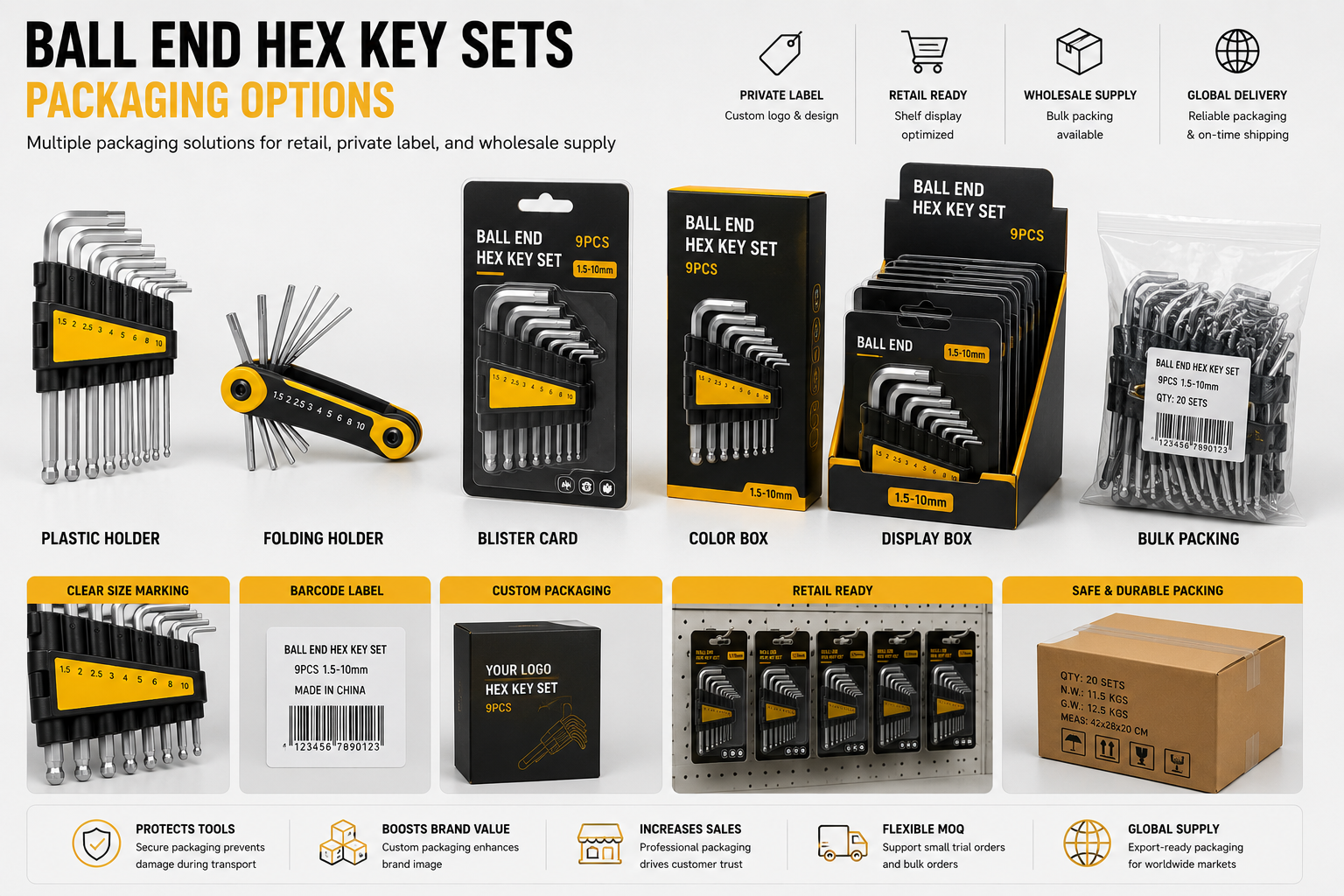

Packaging can also affect product value. Shuntai can support plastic holders, folding holders, blister cards, color boxes, display boxes, bulk packing, barcode labels, and private label packaging. For hardware retail channels, clear packaging and size marking help improve customer selection. For industrial supply channels, durable holders and organized storage can help reduce missing tools and improve workshop efficiency.
Procuring reliable assembly tools requires looking beyond the price tag. Partner with vendors who stand behind their metallurgy. Look closely at warranty and replacement policies. Lifetime warranties against rounding or snapping signal extreme manufacturer confidence in their heat treatment processes. If a brand hesitates to replace a sheared tool, you should hesitate to put it on your assembly line.
Evaluate anti-corrosion finishes based on your specific industry environment. Manufacturers commonly use black oxide or chrome plating. Black oxide tends to hold thin films of oil, which prevents rust excellently in traditional mechanical shops. However, it offers no aesthetic shine and can leave dark residue on clean hands.
Chrome plating is exceptionally easy to clean. It resists harsh chemicals well. However, you must avoid cheaply applied chrome. Cheap chrome risks flaking off under high torque. Flaking chrome introduces tiny, razor-sharp metallic shards into sensitive machinery components. For cleanrooms or food-grade assembly, specify high-quality, non-flaking finishes or raw stainless steel variants.
Always conduct pilot testing before outfitting an entire facility. Procure a sample set for the assembly floor. Instruct your senior technicians to test tolerances on the specific grade of fasteners used in your machinery. Gauge the flex of the long arm. Inspect the ball neck for stress marks after a week of heavy use. Real-world testing validates manufacturer claims and ensures the tooling matches your specific operational tempo.
As a hand tools manufacturer in China, Shuntai provides factory direct supply for ball end hex keys, hex key wrench sets, T-handle hex keys, Torx keys, screwdrivers, voltage tester screwdrivers, and related maintenance tools.
For ball end hex key products, we can support different material options, size ranges, surface finishes, holder styles, packaging methods, and OEM requirements. Our products are suitable for hardware wholesalers, tool distributors, industrial maintenance suppliers, retail brands, and private label customers.
Working with a factory supplier helps buyers control product quality, adjust packaging details, and build a more stable long-term supply chain. Shuntai focuses on consistent quality, competitive pricing, flexible OEM service, and reliable delivery for international B2B customers.
Ball end hex keys are practical tools for machinery assembly, equipment repair, and maintenance work in tight spaces. Their angled access design helps technicians reach recessed or obstructed fasteners more efficiently than standard straight-end tools in many working situations.
However, ball end hex keys should be used correctly. The ball end is suitable for angled access and fast run-down, while the straight end should be used for final tightening or higher torque applications. Choosing the right material, size standard, surface finish, and tool configuration helps reduce fastener damage and improve long-term tool performance.
For B2B buyers, a good ball end hex key supplier should provide stable material quality, accurate sizing, suitable packaging, and flexible OEM support. Shuntai can supply ball end hex key sets for machinery assembly, industrial maintenance, hardware retail, wholesale distribution, and private label hand tools programs.
A: Ball end hex keys are used for tightening and loosening hex socket fasteners in areas where straight tool access is limited. They are commonly used in machinery assembly, equipment repair, furniture installation, automotive maintenance, and industrial service work.
A: Yes. The ball end design allows angled access to recessed or obstructed fasteners. The working angle depends on tool quality, fastener condition, and application environment. Users should avoid excessive force when working at a large angle.
A: The ball end is mainly suitable for fast run-down and angled access. For final tightening or higher torque operation, the straight end of the hex key should be used because it provides better contact with the socket.
A: S2 steel is suitable for higher-strength and professional applications. CR-V steel is a good option for regular maintenance and general professional use. 40Cr and carbon steel can be selected for cost-sensitive markets or lighter-duty applications.
A: Metric sets are commonly used for European and Asian equipment, while inch or SAE sets are often used for some US-standard machinery and fasteners. Buyers should choose the correct standard according to their target market and equipment type.
A: Fastener stripping may be caused by using the wrong size, mixing metric and inch standards, poor machining accuracy, worn tools, damaged fasteners, or applying too much torque at an angle. Correct size selection and proper usage are important.
A: Yes. Ball end hex key sets are suitable for hardware stores, industrial tool suppliers, machinery maintenance markets, and OEM hand tool programs. Complete sets are easier for end users to select and can cover more repair needs.
A: Common packaging options include plastic holders, folding holders, blister cards, color boxes, display boxes, bulk packing, barcode labels, and private label packaging. Packaging can be customized according to wholesale, retail, or OEM requirements.
