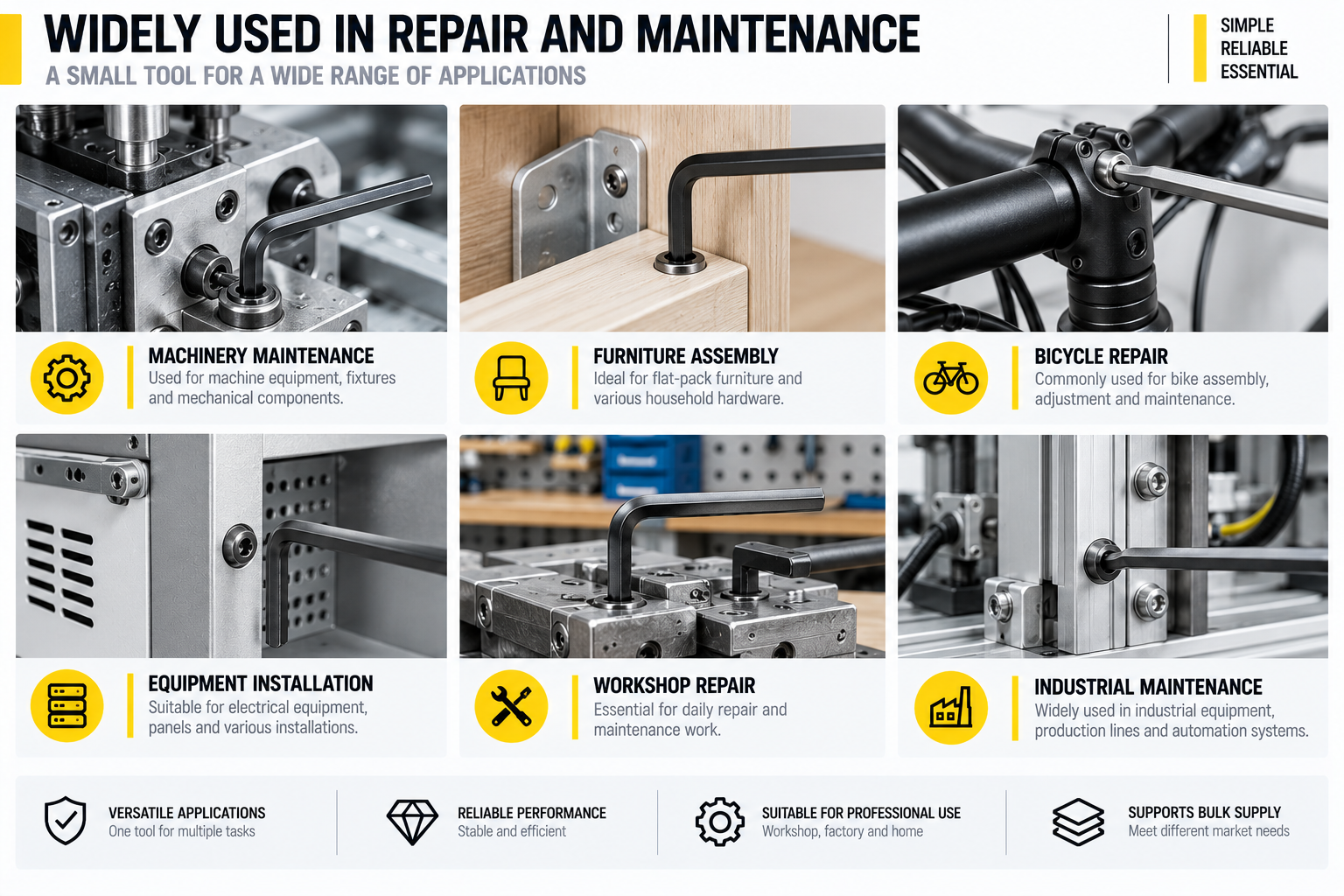

L-shape hex keys are widely used for hardware repair, machinery maintenance, furniture assembly, equipment installation, bicycle servicing, and general fastening work. Their simple right-angle structure provides two useful working positions: one for additional leverage and another for extended reach and faster rotation.

Using the correct hex key is important because socket fasteners can be damaged by incorrect sizing, incomplete insertion, worn tool tips, or excessive force. A properly selected and accurately machined tool helps improve engagement and makes routine maintenance more efficient.

For professional users and B2B buyers, choosing L-shape hex keys involves more than selecting a size range. Material grade, dimensional accuracy, arm length, tip design, surface finish, metric or SAE standard, storage method, and packaging can all affect product performance and market positioning.

This guide explains how to use L-shape hex keys correctly for hardware repair and maintenance. It also provides practical selection points for workshops, wholesalers, distributors, hardware retailers, OEM buyers, and industrial hand tool suppliers.

Key Takeaways

• Use both arms correctly: The short arm can provide greater leverage, while the long arm provides better reach and faster rotation.

• Correct sizing is essential: Metric and SAE hex keys should not be treated as interchangeable, even when two sizes appear very close.

• Full engagement improves performance: Insert the tool completely into the fastener before applying rotational force.

• Material and machining both matter: CR-V, S2, 40Cr, and other materials should be evaluated together with heat treatment and dimensional accuracy.

• Ball ends and flat ends serve different purposes: Ball ends improve angled access, while straight ends provide better contact for higher torque.

• B2B buyers should evaluate the complete set: Size range, steel grade, finish, storage holder, packaging, and OEM requirements should be considered together.

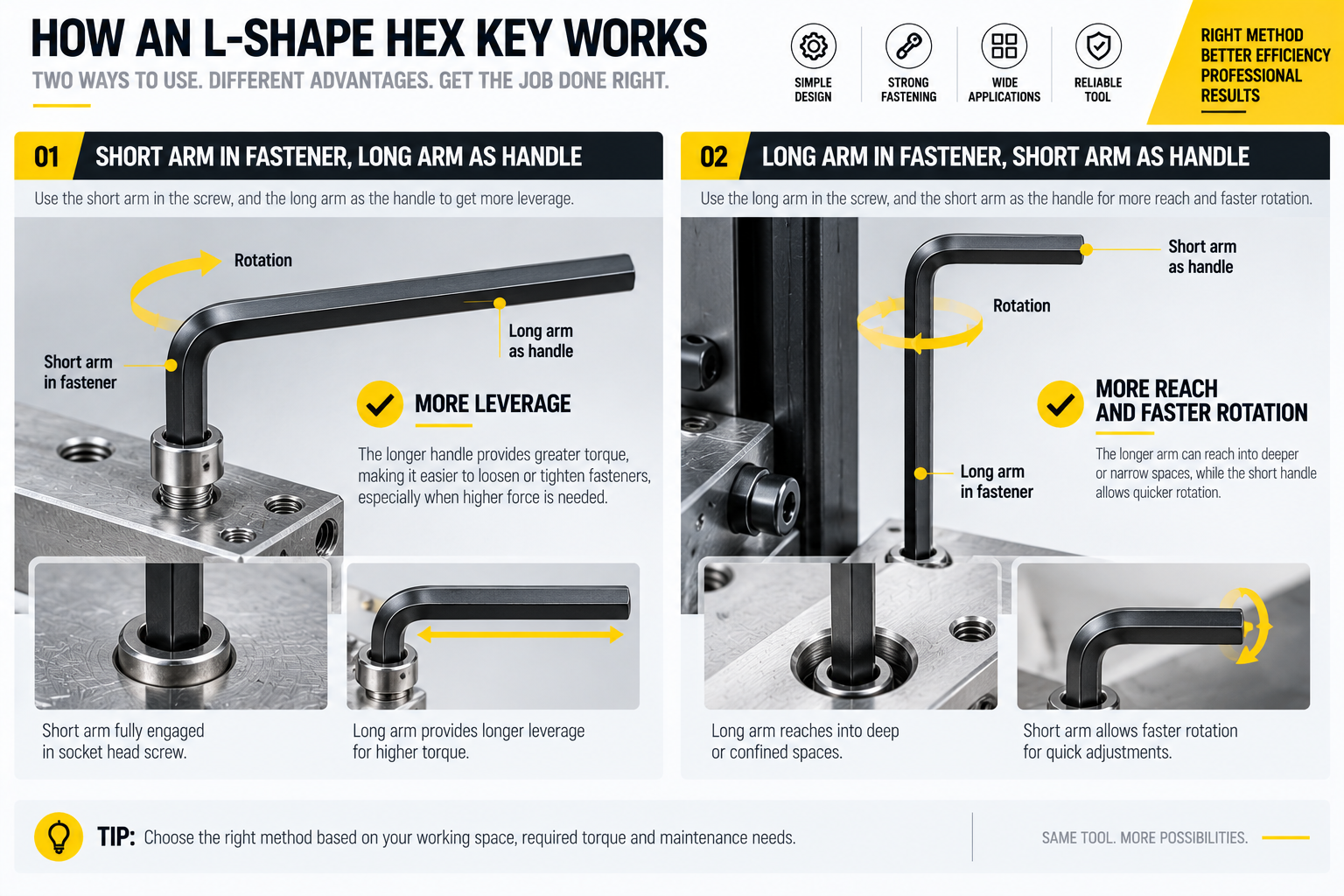

The Mechanics of L-Shape Hex Keys: Why Geometry Matters

The right-angle design of an L-shape hex key provides two different working orientations. Understanding how to use each side helps users improve access and control during repair.

Short Arm in the Fastener:
When the short arm is inserted into the fastener, the longer arm becomes the handle. This configuration provides additional leverage and is useful when loosening tighter fasteners or applying controlled final tightening.

Long Arm in the Fastener:
When the long arm is inserted into the fastener, the shorter arm becomes the handle. This configuration provides deeper reach and allows faster rotation after the fastener has already been loosened.

Flat or straight hex ends provide broad contact with the internal walls of the fastener and are generally preferable for higher torque work.

Ball end hex keys provide an additional advantage when direct access is restricted. The rounded end allows angled engagement with the fastener, making it useful around brackets, housings, and other obstructions. Because contact area is reduced compared with a straight end, the ball end is better suited to access and fast run-down rather than maximum torque.

The correct orientation depends on fastener condition, required torque, available clearance, and tool design.

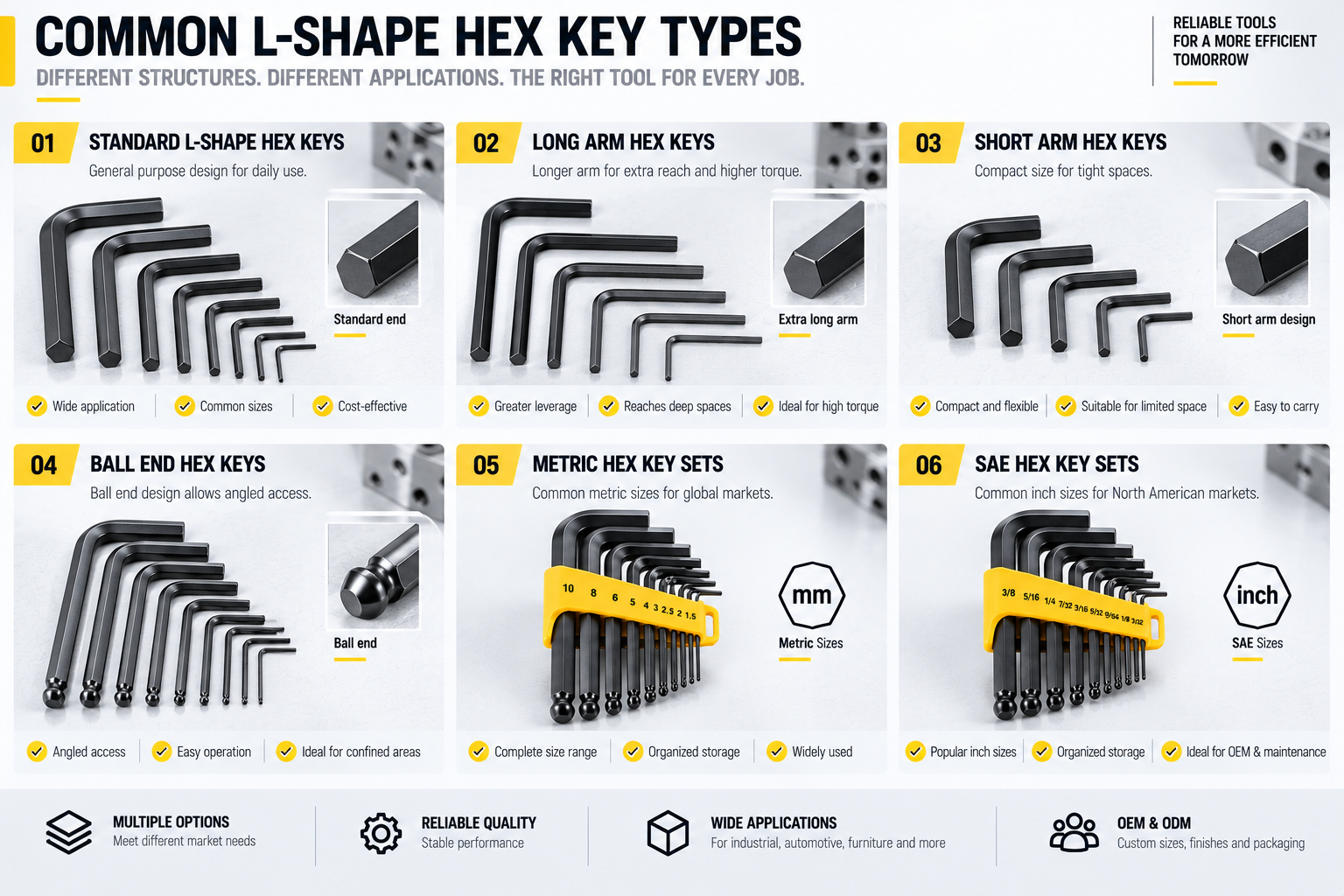

Common L-Shape Hex Key Products We Supply

Different repair and maintenance applications require different L-shape hex key configurations. For B2B buyers, selecting the appropriate structure helps match the tool to the end user, application, and target price level.

Shuntai can supply:

• Standard L-shape hex keys

• Long arm hex keys

• Short arm hex keys

• Ball end hex keys

• Metric hex key sets

• SAE / inch hex key sets

• CR-V hex keys

• S2 hex keys

• 40Cr hex keys

• Customized size combinations

Standard L-shape hex keys are suitable for general fastening and maintenance. Long arm versions provide better reach for recessed positions, while ball end versions improve access where the tool cannot remain perfectly perpendicular to the fastener.

For wholesalers and distributors, complete hex key sets are generally more convenient for retail and workshop use because they provide multiple sizes in an organized holder. Size combinations, materials, finishes, and packaging can also be selected according to customer market requirements.

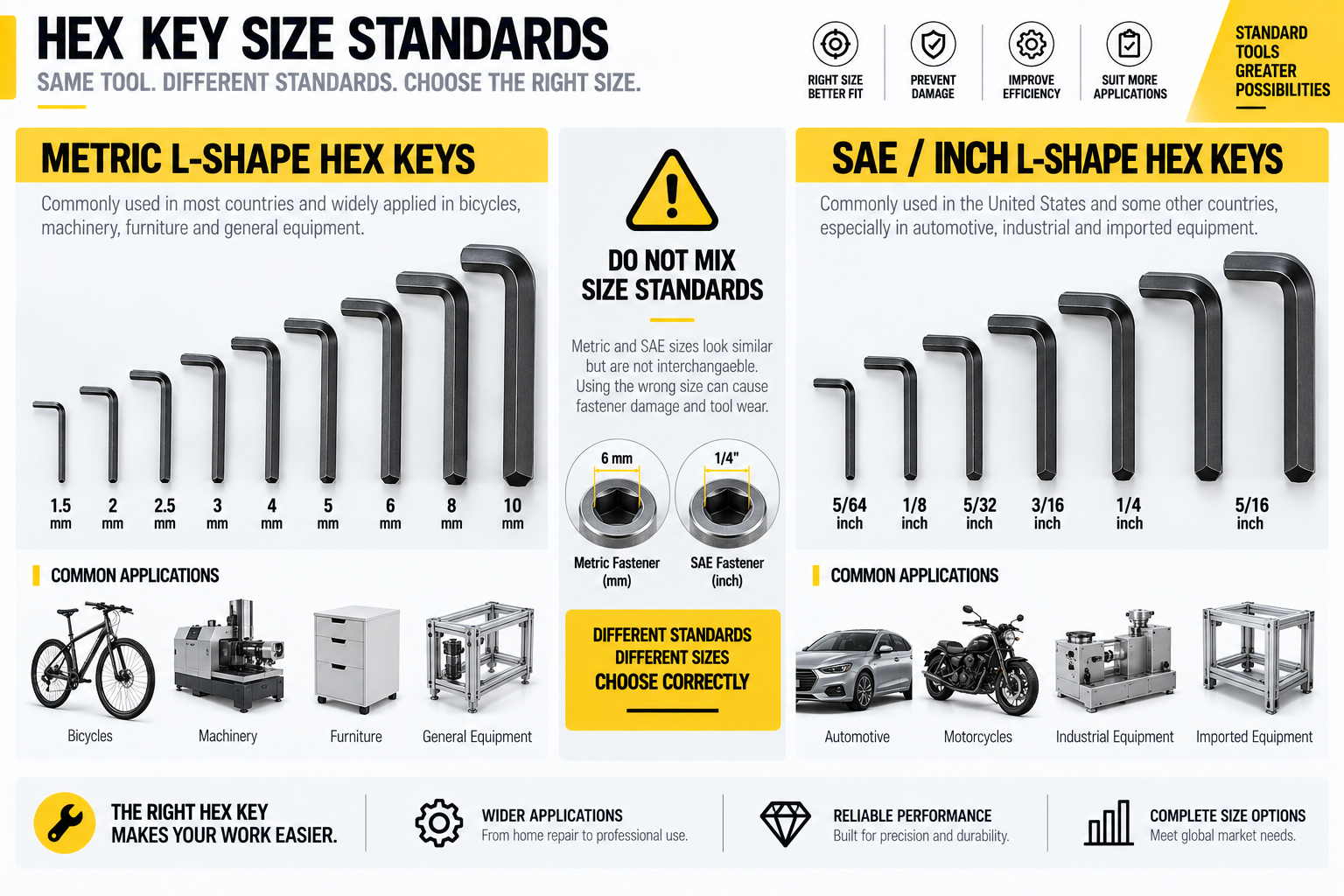

Sizing Standards: Metric vs. SAE in Hardware Evaluation

Choosing the correct size standard is one of the most important steps in hex key use. Metric and SAE sizes can sometimes appear very similar, but small dimensional differences may reduce fastener engagement.

Metric hex keys are widely used in machinery, furniture, bicycles, equipment, and products designed around metric fasteners. SAE or inch hex keys are used for equipment and hardware designed around imperial standards.

Users should not select a tool only because it appears to fit. The hex key should seat deeply and with minimal movement inside the socket before force is applied.

For workshops servicing equipment from different markets, keeping metric and SAE sets clearly separated helps reduce accidental size mismatch. Laser-etched or stamped size identification and organized holders can also improve tool selection efficiency.

Metric and SAE Size Selection for Different Markets

For B2B buyers, size configuration should be selected according to the target market and end-user application.

Common metric sets may include:

1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm and 10mm.

SAE sets can be configured according to the inch fastener sizes commonly used in the customer's market.

Retail distributors may prefer complete sets with clear size markings and compact holders. Industrial customers may place greater emphasis on arm length, material grade, dimensional consistency, and durable storage.

Keeping metric and SAE product lines clearly separated can also simplify product presentation and reduce end-user selection errors.

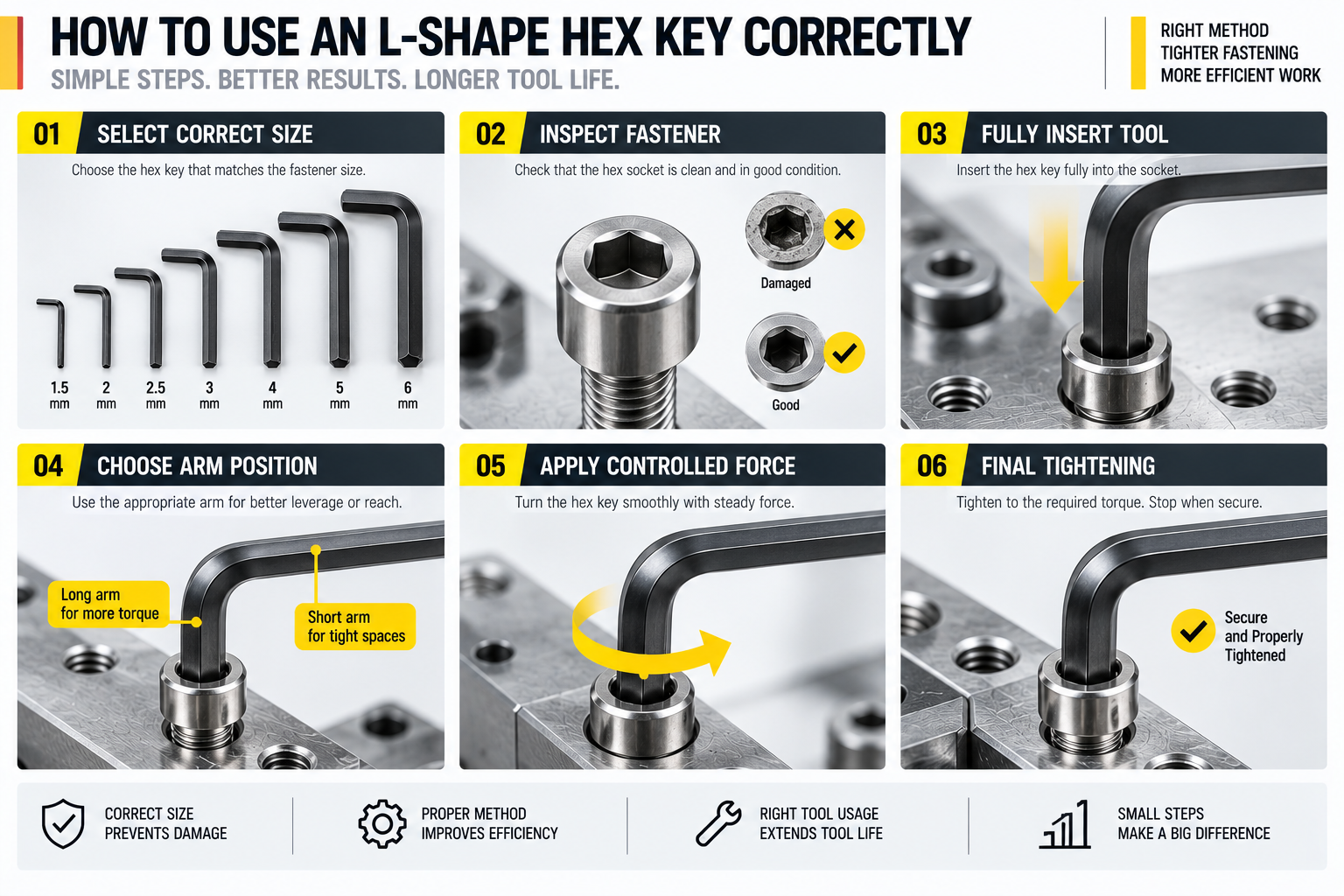

Step-by-Step Use of L-Shape Hex Keys

Using an L-shape hex key correctly helps improve fastener engagement and reduce unnecessary wear.

Step 1: Identify the Correct Size

Confirm whether the fastener uses a metric or SAE standard and select the exact matching size. Avoid using a smaller key simply because it can enter the socket.

Step 2: Inspect the Fastener

Check the hex recess for dirt, metal chips, corrosion, or existing damage. The tool should be able to seat fully inside the socket.

Step 3: Insert the Tool Completely

Push the hex key fully into the fastener before turning. Full engagement helps distribute force across the internal surfaces.

Step 4: Select the Appropriate Arm

Use the long handle orientation when additional leverage is required. Use the long shaft for deeper access and faster rotation after the fastener is loose.

Step 5: Apply Controlled Force

Apply smooth rotational pressure rather than sudden impact. If the tool begins to slip or the fastener feels unstable, stop and check the size, condition, and engagement again.

Step 6: Use the Straight End for Final Tightening

When higher torque or final tightening is required, a straight hex end generally provides better engagement than a ball end.

Correct size selection and controlled operation are more important than simply applying additional force.

Managing Common Hardware Repair Problems

Hardware repair may involve fasteners that are worn, corroded, damaged, or difficult to access. In these situations, increasing force without first identifying the cause can create additional damage.

Seized or Corroded Fasteners

Inspect the fastener and surrounding component before attempting removal. Where appropriate, use a suitable manufacturer-approved penetrating lubricant and allow sufficient time for it to work. Avoid excessive force if the fastener does not begin to move normally.

Worn or Rounded Hex Recesses

If the internal hex profile is already damaged, stop using a standard hex key if it no longer engages securely. Continuing to turn a poorly fitting tool may further damage the fastener.

Professional extraction tools or appropriate repair procedures are recommended for severely damaged fasteners.

Restricted Access

For fasteners behind brackets, inside housings, or near other components, long arm, short arm, stubby, or ball end hex keys may provide better access.

The correct solution depends on the available space and required torque. Tool selection should reduce unnecessary disassembly while maintaining secure fastener engagement.

Upgrading Your Kit: Evaluation Criteria for L-Shape Hex Keys

For professional workshops and B2B buyers, hex key selection should be based on complete manufacturing quality rather than one specification alone.

Important evaluation points include:

• Material grade

• Heat treatment

• Dimensional accuracy

• Tip geometry

• Arm length

• Surface finish

• Size identification

• Holder quality

• Packaging

• Production consistency

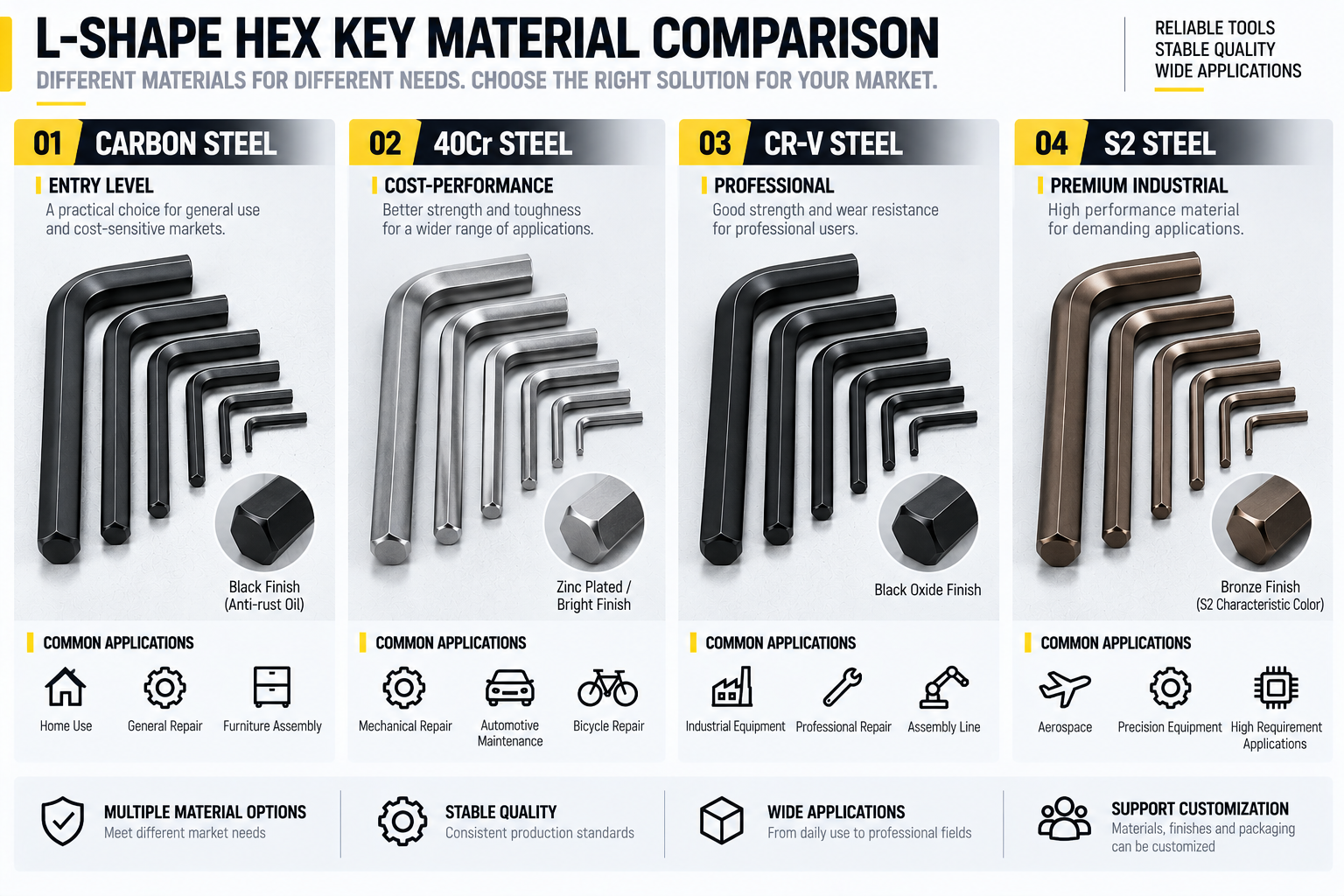

CR-V steel is widely used for professional hand tools because it offers a practical balance of toughness, strength, wear resistance, and cost.

S2 steel is commonly selected for higher-grade hex key products where hardness and wear resistance are important. However, material designation alone does not determine tool performance. Heat treatment, machining accuracy, and product consistency are equally important.

40Cr and carbon steel can also be suitable for different product levels, depending on application and target market.

Surface finishes may include black oxide, nickel plating, chrome plating, zinc plating, and other treatments. Buyers should evaluate both corrosion resistance and dimensional control when selecting a finish.

For frequently used tools, clear size markings and organized holders improve usability and reduce the risk of missing individual sizes.

Material Options for B2B Buyers

Different steel grades can be selected according to intended use, market positioning, and target price.

For OEM programs, material selection can be coordinated with size range, arm length, surface finish, holder style, packaging, and target pricing.

B2B buyers should evaluate material together with heat treatment, dimensional accuracy, and production consistency rather than relying only on the steel name.

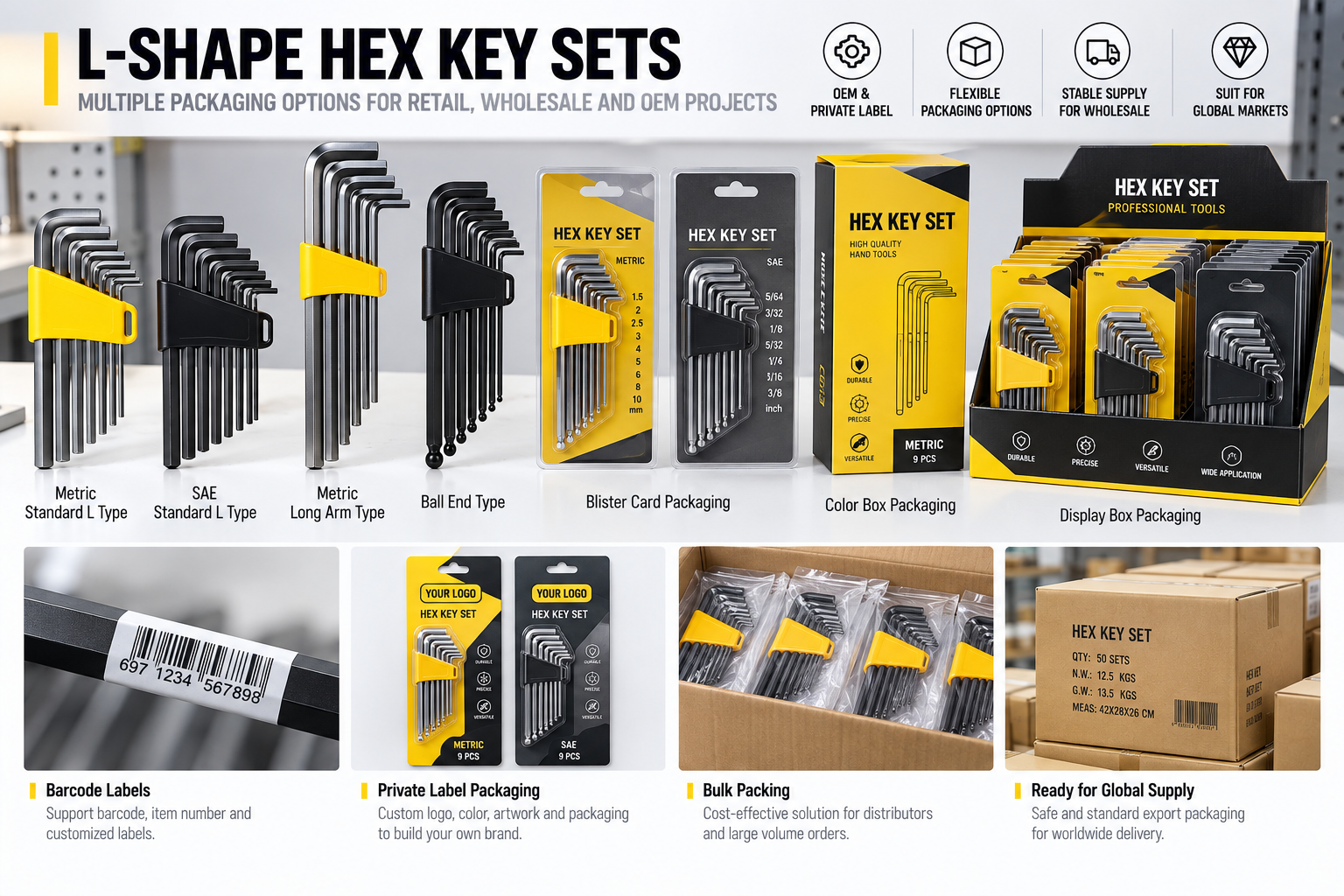

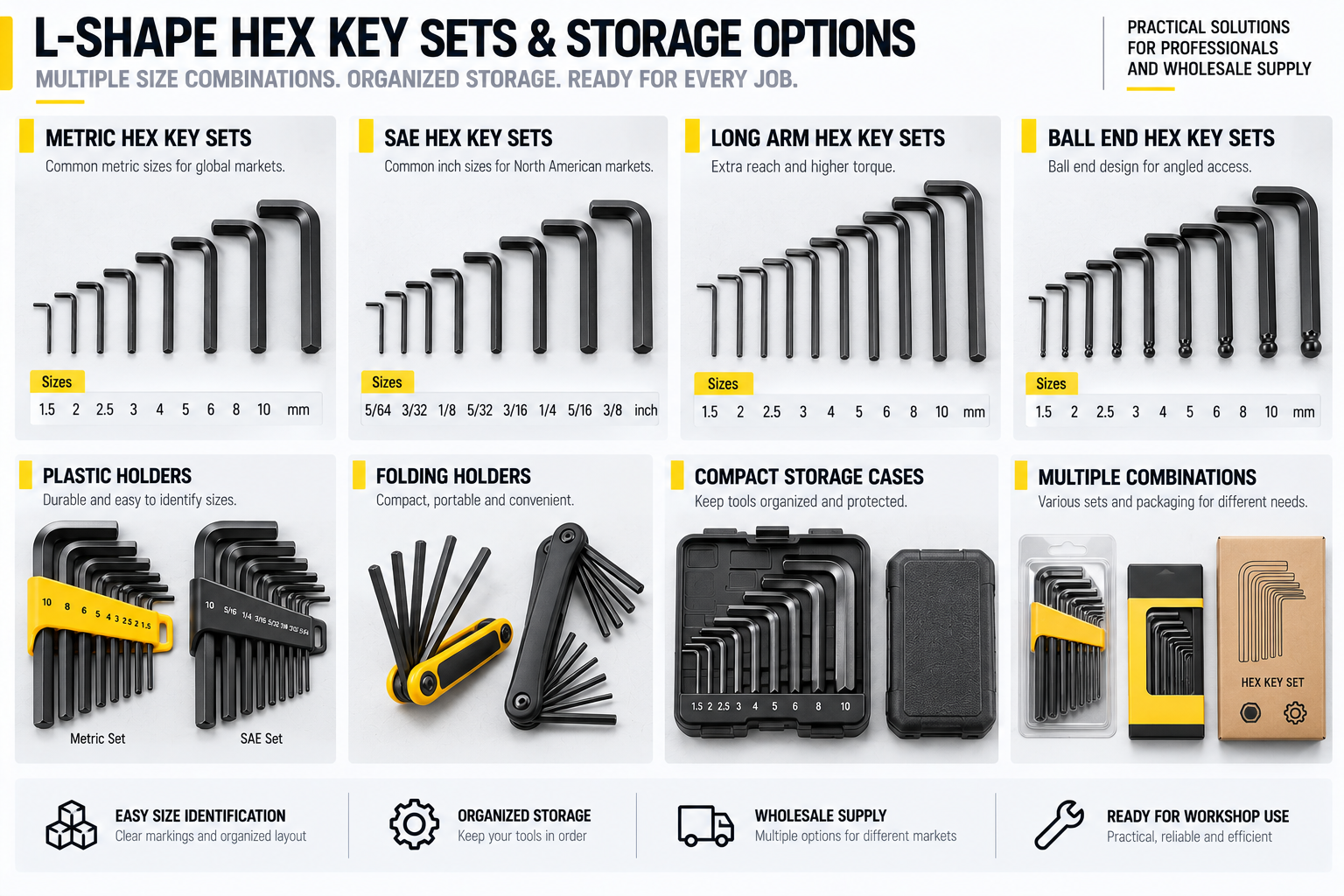

Size Combination and Packaging for Distributors

For wholesale and retail buyers, size combination and packaging are important parts of product planning.

Common options include:

• Metric L-shape hex key sets

• SAE L-shape hex key sets

• Long arm hex key sets

• Ball end hex key sets

• Mixed workshop maintenance sets

• Customized size combinations

Shuntai can support different packaging options, including:

• Plastic holders

• Folding holders

• Blister cards

• Color boxes

• Display boxes

• Bulk packing

• Barcode labels

• Private label packaging

For hardware retail channels, clear size identification and organized packaging help customers select products more easily.

For industrial and workshop supply, durable holders and complete size ranges can improve tool management and repeat use.

OEM buyers can also customize size combinations, holder colors, logo marking, barcode information, and packaging according to market requirements.

Why Choose Shuntai as Your L-Shape Hex Key Supplier

Wenzhou Shuntai Hardware provides factory-direct supply for L-shape hex keys, ball end hex keys, Torx keys, T-handle hex keys, screwdrivers, voltage tester screwdrivers, and related hand tools.

For L-shape hex key products, we can support different:

• Steel materials

• Metric and SAE size ranges

• Long arm and short arm designs

• Ball end configurations

• Surface finishes

• Holder styles

• Logo marking

• Retail packaging

• Bulk packaging

• OEM and private label requirements

Our products are suitable for hardware wholesalers, tool distributors, workshop suppliers, industrial maintenance companies, retail brands, and OEM tool programs.

Working directly with a manufacturer allows buyers to coordinate product specifications, packaging, price positioning, and repeat-order consistency more efficiently.

Shuntai focuses on stable production, practical quality control, flexible OEM service, competitive factory supply, and reliable delivery for international B2B customers.

Conclusion

L-shape hex keys are practical and versatile tools for hardware repair, machinery maintenance, furniture assembly, equipment installation, and general fastening work.

Correct use begins with selecting the exact metric or SAE size and inserting the tool fully into the fastener. The short and long arms provide different combinations of leverage, reach, and rotation speed, while ball end versions can improve access where straight alignment is difficult.

Tool quality should be evaluated through material grade, heat treatment, dimensional accuracy, tip design, surface finish, and production consistency. CR-V, S2, 40Cr, and carbon steel can all serve different market positions and applications.

For B2B buyers, a suitable L-shape hex key supplier should also provide practical size combinations, stable quality, flexible packaging, and OEM support.

Shuntai can supply L-shape hex key sets for workshop repair, industrial maintenance, hardware retail, wholesale distribution, and private label hand tool programs.

FAQ

Q: What are L-shape hex keys used for?

L-shape hex keys are used to tighten and loosen screws and bolts with internal hexagonal sockets. They are widely used in machinery maintenance, furniture assembly, equipment installation, bicycle repair, workshop maintenance, and general hardware applications.

Q: How should the short and long arms of an L-shape hex key be used?

Insert the short arm into the fastener when additional leverage is required. Insert the long arm when deeper reach or faster rotation is more important.

Q: What is the difference between a hex key and an Allen key?

Hex key is the general tool category name, while Allen key is a commonly used term for the same type of internal hex driving tool.

Q: Should I use metric or SAE hex keys?

Use the standard that matches the fastener. Metric and SAE sizes should not be treated as interchangeable, even when two sizes appear similar.

Q: When should a ball end hex key be used?

Ball end hex keys are useful when the fastener cannot be approached directly. They allow angled access but are generally better for positioning and fast run-down than for high-torque final tightening.

Q: Which material is suitable for L-shape hex keys?

The appropriate material depends on application and product positioning. Carbon steel and 40Cr can suit economical or general-use products, CR-V is common for professional tool sets, and S2 is often selected for higher-grade products.

Q: Why can a hex key slip inside the fastener?

Common causes include incorrect size, worn tool tips, incomplete insertion, damaged fasteners, dimensional mismatch, or excessive force. Using the correct size and ensuring full engagement can help reduce slipping.

Q: Can L-shape hex key sets be customized for OEM projects?

Yes. Depending on the project, material, size range, arm length, ball end configuration, surface finish, holder style, logo marking, barcode information, and retail packaging can be customized.
